NEW COLLOID MILLS

  • Home
  • NEW COLLOID MILLS

NEW COLLOID MILLS

Alliance Fluid Handling are exclusive distributors of Probst & Class Colloid Mills for the UK & Ireland. Probst & Class are one of the industry’s leading suppliers of Colloid Mills since 1926, with specialist expereince in; Homogenizing, Dissolving, Mixing, Wet milling, Pre-Comminution, De-agglomeration, Dispersing, Emulsifying, De-aeration and Micro Comminution.

PUC Colloid Mills are to be used for the precise milling and mixing of substances providing a consistant result via the stator rotor milling procedure.

PUC Colloid Mills type “O”

  • Operating solely in a vertical position, fully enclosed motor
  • Materials can be fed to the mill via various different types of hopper or via piping flanged directly to the mill
  • Seven standard sizes , standard milling gears
  • The milling gear may be adapted to your specific process
  • Capacity between 150 and 34.000 l/h
  • Customised solutions offered for special processes

The type O has seven different sizes: 60 (lab scale), 100, 120, 130, 150, 160, 180

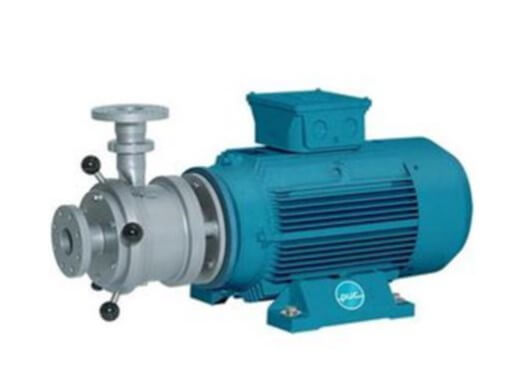

PUC Colloid Mills type “E”

  • Designed for inline operation
  • Many widely used types of connection available (threaded nozzle, flange, tri-clamp, etc.)
  • Six standard sizes, standard milling gears
  • The milling gear may be adapted to your specific process
  • Capacity between 150 and 34.000 l/h
  • Customized solutions offered for special processes

The type E has seven different sizes: 60 (lab scale), 100, 120, 130, 150, 160, 180

PUC Colloid Mills type “EL”

  • Designed for inline operation
  • Many widely used types of connection available (threaded nozzle, flange, tri-clamp, etc.)
  • With bearing block that allows our customers to use their own standard motors (standard B3 motors)
  • At high inlet pressures and viscosity values, the forces generated can be absorbed even more effectively
  • Our bearing blocks are fitted only with high quality bearings with permanent lubrication, made in Germany
  • Six standard sizes, standard milling gears
  • Capacity between 150 and 80.000 l/h
  • Customized solutions offered for special processes

Type EL has nine different sizes: 100, 120, 130, 150, 160, 180, 220, 260, 600

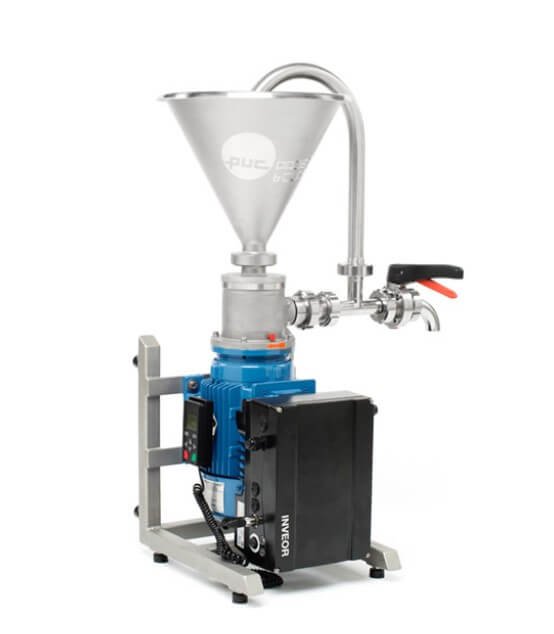

PUC Vibro Reactors

  • Especially used for the production of emulsions and dispersions
  • For the wetting, comminution, mixing, de agglomeration and especially homogenizing of liquid/solid mixtures
  • The rotor stator system has a three stage configuration, equipped with axial rotor
  • Defibration process possible, can be used in a wide variety of applications
  • Capacity between 150 and 100.000 l/h
  • In many applications, high pressure homogenizing can be replaced, as droplet sizes below 5 µm can be achieved
  • Frequently, the machine is connected to batch hoppers, mixing and agitator vessels to reduce mixing times or accelerate dissolving processes
  • Any material that can be pumped may be processed

PUC Perforated Disc Mills

  • For crushing lumpy solid pieces and for mashing materials such as fruit, vegetables and meat for the pre comminution of soy beans
  • In general for the pre production and processing of foodstuffs, chemical and cosmetic products and the comminution of soaked paper
  • The principle of the PUC perforated disc mill is based on a knife bar rotating close to the perforated disc
  • The product is comminuted and then discharged by a driver wheel or impellers

PUC Lubricant Processing Unit

  • For the homogenizing and de aeration of NLGI 0 4 greases, up to 10.000 Kg/h
  • Penetration or stiffness evenly distributed thickeners considerably lower oil bleed (oil separation)
  • Fine dispersion Avoiding of agglomeration of solids respectively oil film rupture
  • Very economical implementation of these product improvements und excellent price performance ratio

Compared with other homogenizing units

  • Very robust, easy to install and operate, presents easy maintenance and cleaning properties

Dowload our latest brochure here
